Senior highschool thesis on Propeller Propulsion

by Cyrus
(Philippines)


Hi! I'm currently a grade 12 STEM student and my research title was approved but my methodology was not. I plan to do an evaluation of the performance of different airplane propellers particularly those with 2 blades,3 blades and 4 blades.

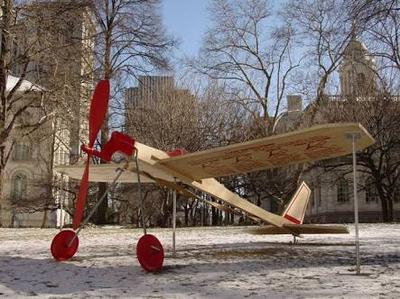

I plan to gather data using a prototype balsa wood rubberband plane. Just a small scale. Then it would be tied to a some kind of weight so that it's motion would be circular. I proposed the data gathering using the average speed formula with 2pi(radius)/T.

But my teacher disagreed with it.

Do you know any other equations in which i could test it's efficiency? Or physical equations? Because i proposed that the trial with the farthest distance and lesser time would yield the most efficient one. Please help!!

Comments for Senior highschool thesis on Propeller Propulsion

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
Static thrust test
by: rcdude07

Unless you have a reliable speedometer, speed could be considered subjective.

There's also more to a prop than speed. Since produce more thrust and spin slower. The number of blades also impacts effeicency. Props have 2 numbers, pitch and diameter. You change one, you must change the other.

Also in your method the rubber band will be a variable the changes every. An electric motor would be more reliable and consistent.

You can tie to a fishing scale to get static thrust measurement.

Rating
starstarstarstarstar
Do you still have the results?
by: Anonymous

Hey.
I don't know how old this is, but I'm also working on a project for a STEM school. I am trying to select a propeller for my project. Do you happen to have the results from your experiment? I don't have a lot of power to work with and need to get the most bang for my buck.

Please email me at clblncstr26@gmail.com if you can offer any help.
